  • TI300 Infrared Thermodetector
    TI300 Infrared Thermodetector

    Email:info@hkchuangwei.com

    • Details
    • Parameters

    TI300紅外測溫儀


    ? ? ??

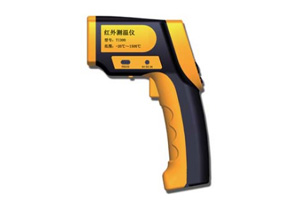

    Summary of TI300 Infrared Thermodetector

    ?

    TI300 infrared Thermodetector?has a wide range of temperature measurement, excellent optical system and laser aiming system, making TI110 an excellent infrared Thermodetector?in industry.The working principle of infrared temperature measurement is to gather the infrared radiation energy of the target object in its field of view through the special optical system of the Thermodetector. The infrared energy is focused on the photoelectric detector and transformed into the corresponding electrical signal, which is then converted into the temperature value of the target.

    The working principle of infrared temperature measurement is to gather the infrared radiation energy of the target object in its field of view through the special optical system of the Thermodetector. The infrared energy is focused on the photoelectric detector and transformed into the corresponding electrical signal, which is then converted into the temperature value of the target.

    ?

    Functional Characteristics of TI300 Infrared Thermodetector

    Fahrenheit and Celsius Conversion Function

    High/low alarm function, high/low alarm value should be adjustable

    LCD Backlight Function

    Display retention function

    Coaxial Laser Aiming Function

    Real-time value, maximum, minimum, difference, average conversion function

    Storage and deletion functions

    Emissivity adjustable function

    Automatic shutdown function

    Display holding time is about 7 seconds

    Electricity Display Function

    Real-time clock function


    Technical parameters of TI300 infrared Thermodetector

    Temperature measurement range: 400?C?~1500?C.

    _Accuracy: +1%

    Repetition accuracy: +5%

    Optical Resolution (Distance Coefficient): 50:1 (95% Energy)

    _Working band: 8-14 um

    Emissivity (Emissivity): Adjustable

    Display resolution: The temperature below 1000℃?is 0.1?C?and above 1000℃?is 1?C?respectively.

    Display mode: 4-bit LCD (liquid crystal backlight)

    Response time:<1000ms

    Targeting mode: coaxial laser

    Temperature conversion:

    High and low temperature alarm:

    The maximum and minimum mean values show that:

    LCD backlight: Yes.

    Power Supply: AAA 1.5V Battery | 2 Sections

    Size: 192 x 192 x 50 (mm)

    Weight: 445g
