    Fast Hot Spot Couple KB-602
    Fast Hot Spot Couple KB-602

    Email:info@hkchuangwei.com

    • Details
    • Parameters

    Fast Hot Spot Couple KB-602


    Fast Hot Spot Couple KB-602

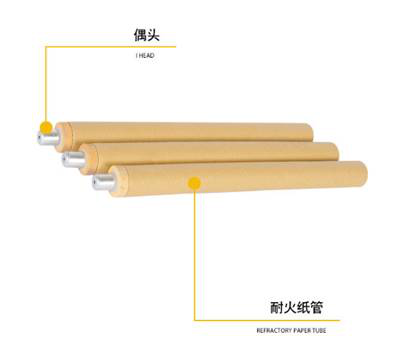

    Product characteristics

    The working principle of fast thermocouple is to measure the temperature of molten steel and high melting metal by using the thermoelectric effect of metal.

    1. The protective cap is made of steel or aluminium with high hardness, high temperature resistance, good ductility, good corrosion resistance, light weight and better conductivity.

    2. The paper tube is made of high quality paper tube with thicker thickness. The hardness of the paper tube is high and the flame retardancy of molten steel is high.

    3. The wall of the pipe is made of high-quality paper tubes with thicker thickness, which is thicker than that of ordinary manufacturers.

    4. Plug-in case brass, plug copper, good insulation material, wear resistance, high temperature resistance.

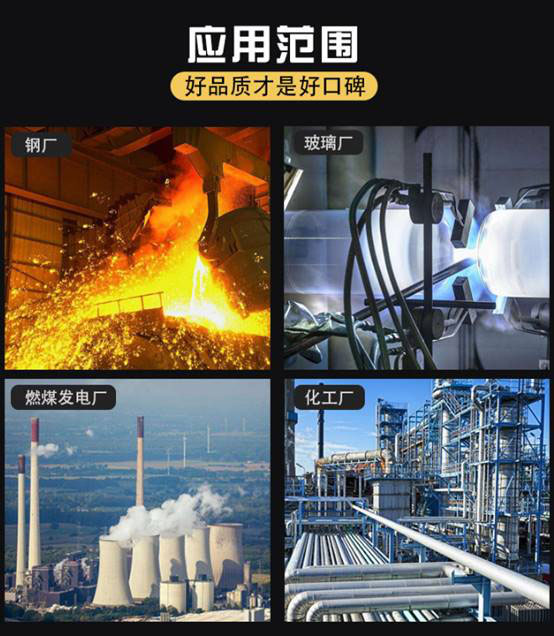

    Scope of application (steel plant, glass plant, coal-fired power plant, chemical plant)

    Fast Hot Spot Couple KB-602


    Technical parameters of fast thermocouple

    Graduation

    WRE3/25 Limit Temperature 1820 C

    S(platinum rhodium 10-platinum) upper limit temperature 1760 C

    R(platinum rhodium 13-platinum) upper limit temperature 1760 C

    B(Platinum Rhodium 30-Platinum Rhodium 6) Upper Limit Temperature 1800 C

    Allowable error

    Ordinary grade (P) +5 C

    Precision Grade (J)+2 Temperature

    Accuracy of private materials

    Palladium Point (1554)(P) +3.

    (J) +1.5 DEG C

    Length of paper tube

    300-1800mm (customizable on demand)

    Protective cap

    Steel or aluminium

    Rate of determination

    More than 98%

    response time

    Less than 5S

    ?

    ?

    Name

    Graduation

    Model

    Recommended operating temperature /C

    Measuring time

    Platinum Rhodium 10-Platinum

    S

    KS

    1650

    4~6s

    Platinum Rhodium 13-Platinum

    R

    KR

    1650

    4~6s

    Pt-Rh 30-Pt-Rh 6

    B

    KB

    1750

    4~6s

    W-Re 5-W-Re 26

    C

    KC (KW5/26)

    1750

    4~6s

    W-Re 3-W-Re 25

    D

    KD (KW3/25)

    1750

    4~6s
